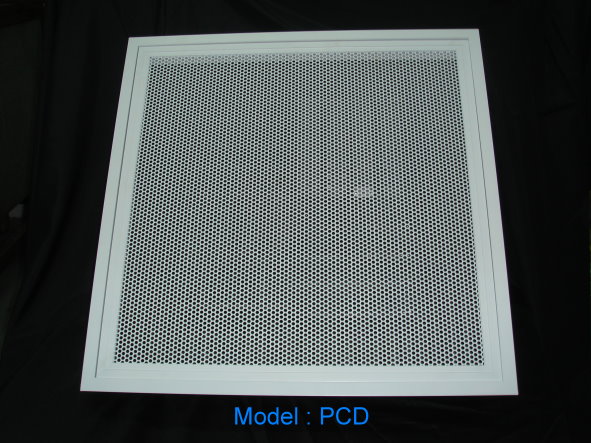

PCD Supply Diffusers, are recommended for heating, ventilating and cooling, and for conditions requiring on-the-job adjustment of air diffusion patterns.

DEFLECTOR — Square necks having directional deflectors that are adjustable for 4, 3, 2, or I-way horizontal diffusion patterns.

Both type diffusers have high diffusion induction rates resulting in rapid temperature and velocity equalization of the mixed air mass well above the zone of occupancy.

The horizontal performance of these full-flow and / or directional deflectors ensure confident use of cooling differentials of 25°F and greater, at predicted low air motion (35 fpm) in the zone of occupancy.

型號PCD沖吼金屬網頁風口 PCD沖吼金屬網頁風口適用於空調及抽風系統，後置活動分風片可調節一至四路之氣流活動而不會改變風口表面之外型，而此型號之風口特點是氣流流動較慢，令環境更加舒適。

FEATURES FEATURES — DEFLECTOR Complete pattern adjustability : 4, 3, 2 or 1-way horizontal air pattern.
Vertical downblow for application requiring localized spot cooling or heating accomplished by removing deflector from diffuser.

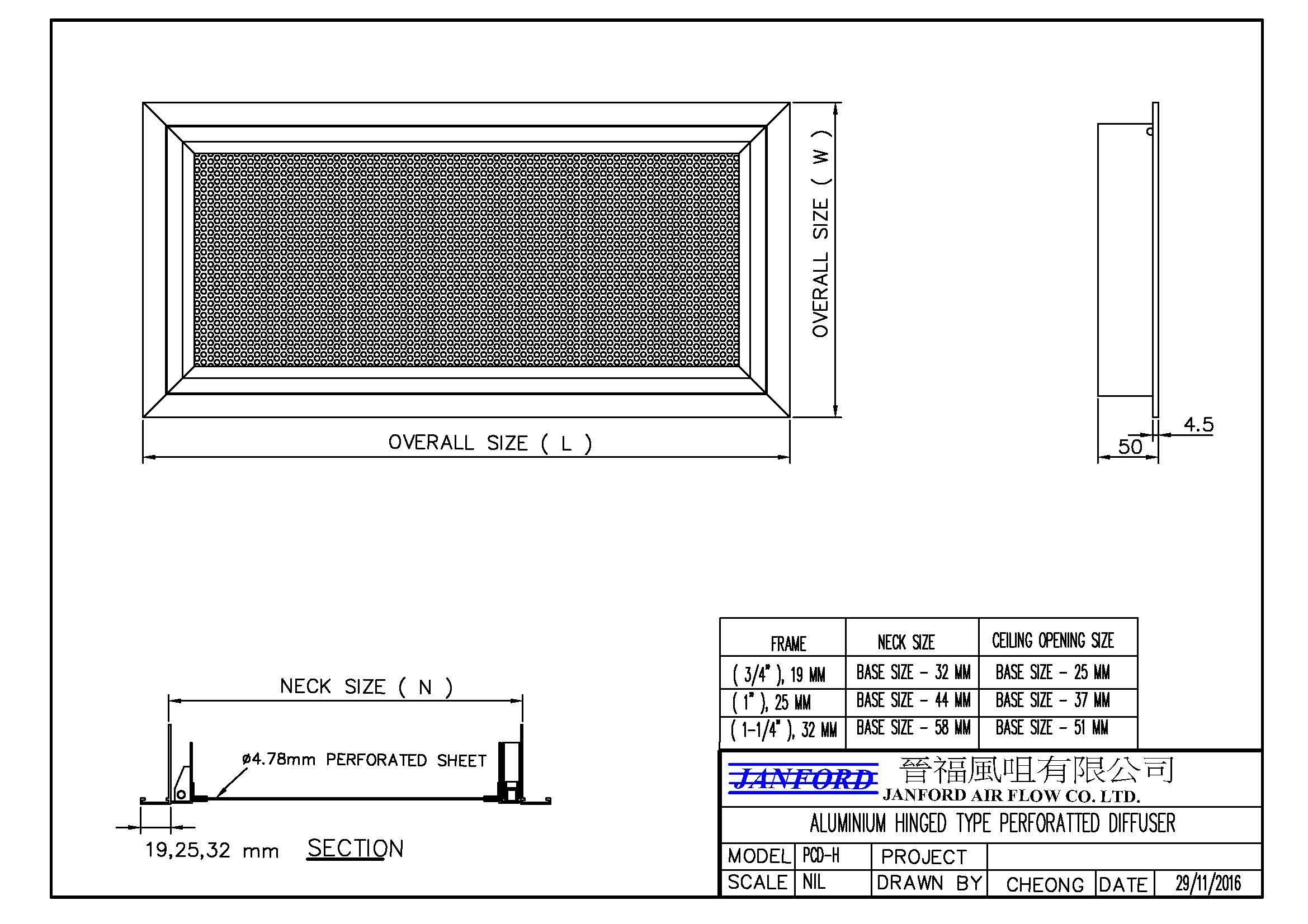

FEATURES — COMMON Hinged, removable perforated faces. No exposed fastening screws or retaining clips providing easy access to accessories.
Optional inlet dampers. Square damper mounts to square neck inlet collar, Diffusers and accessories are constructed of steel and aluminium.

特性 - 掩較式可作四路氣流調較，只需重組分風葉片不需特別工具。
當環境要求垂直氣流時，只需拆除分風葉片便可。
掩較式設計方便安裝和調較調節閥。
鋼製或鋁合金製造均可供應而性能一樣。
