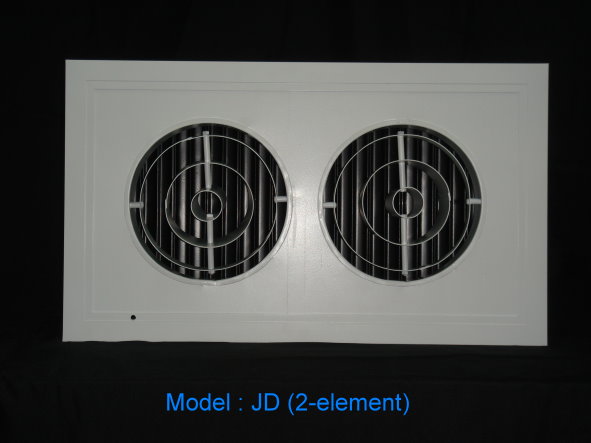

SERIES: JD
JET FLOW DIFFUSER

The JD Jet-Flow diffuser is ideal for supply air applications in large areas such as auditoriums and arenas.

JD is also recommended with vertical discharge for spot heating or spot cooling in entrance ways or concentrated machine areas.

Six element sizes, with 1 through 4 diffuser elements per assembly, are furnished as standard. Other combinations are available upon request.

Each Individual element is adjustable from front or back without tools to provide air deflection of 30° from any plane perpendicular to the diffuser face.This and the large number of available diffuser sizes provide an almost unlimited selection of air quantity and throw combinations.
Construction is of heavy gauge steel with aluminium optional.

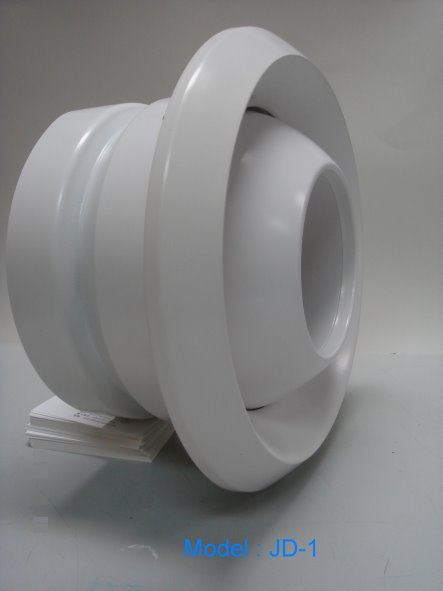

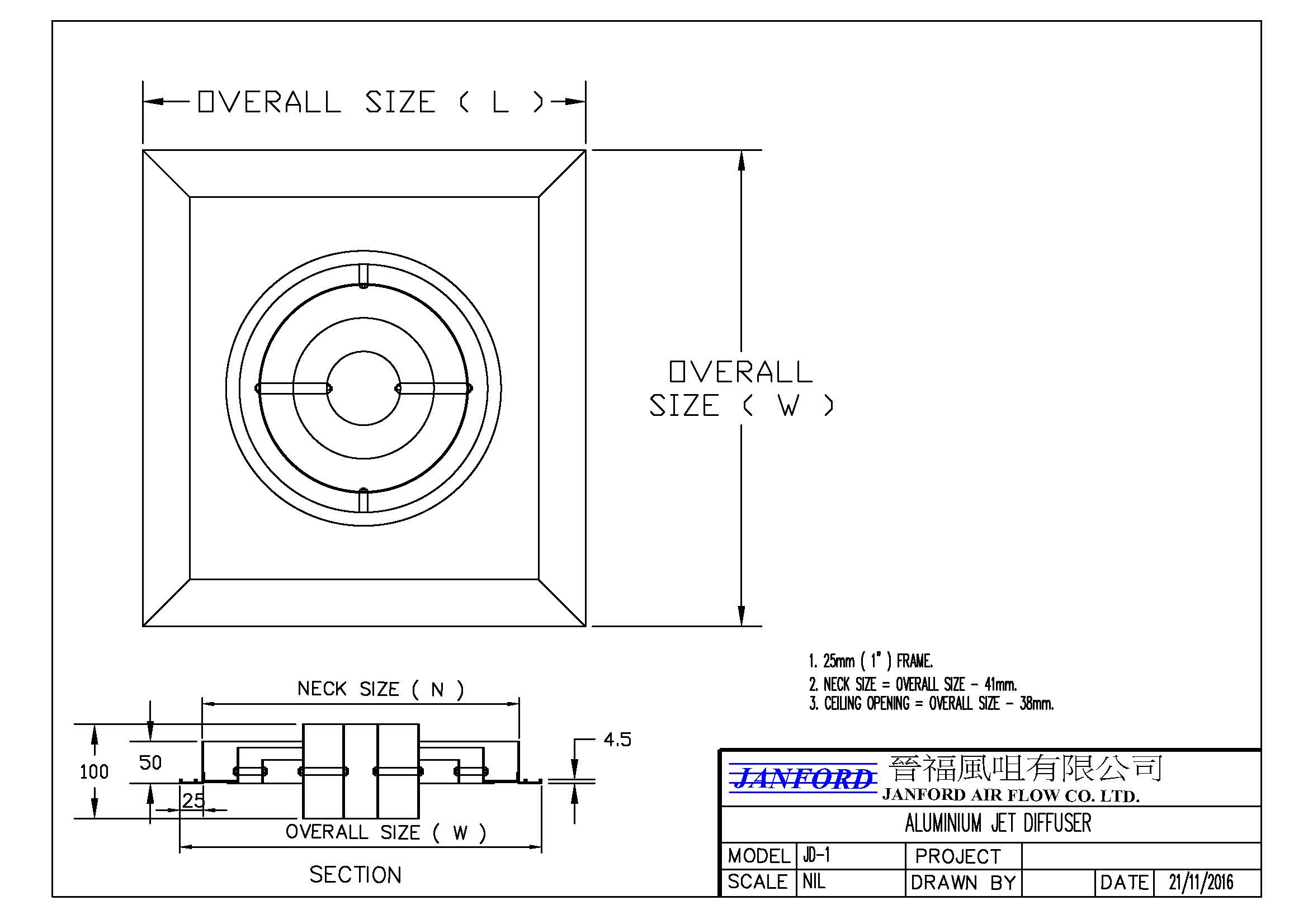

SERIES: JD-1
JET FOIL DIFFUSER

The JD-1 Jet-Flow diffuser is ideal for supply air applications in large areas such as auditoriums and arenas.
JD-1 is also recommended with vertical discharge for spot heating or spot cooling in entrance ways or concentrated machine area.
Each Individual element is adjustable from front or back without tools to provide air deflection of 30° from any plane perpendicular to the diffuser face. This and the large number of available diffuser sizes provide an almost unlimited selection of air quantity and throw combinations.
