Series LD Linear Grilles are designed for installation in the sidewall, and ceiling, and are recommended for supplying heated, ventilated or cooled air and or returning or exhausting room air.

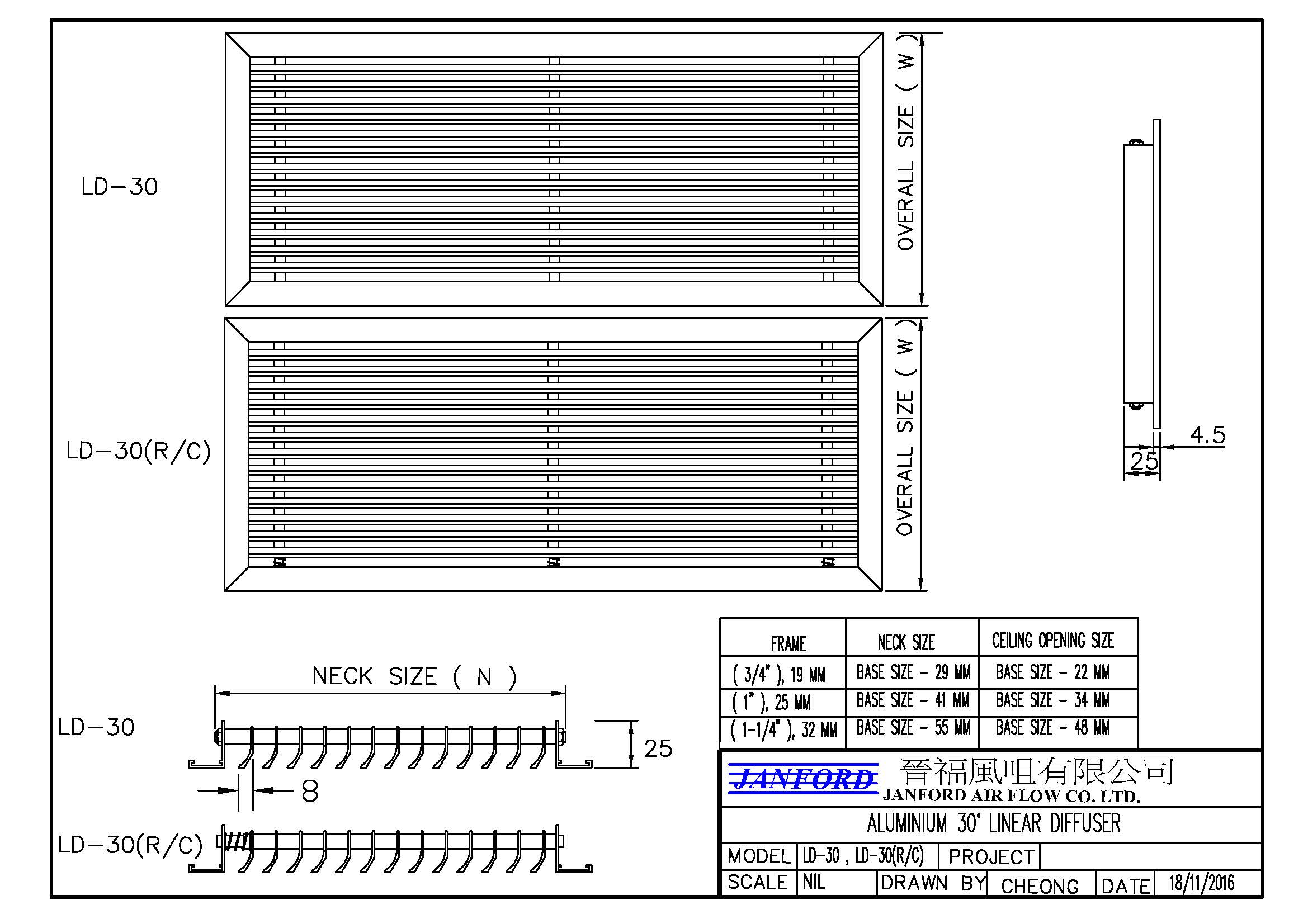

When installed in the sidewall near the ceiling, LD Linear Grilles provide a horizontal pattern above the occupied zone. Core deflections of 30° direct the air path upward to overcome the drop effect resulting cool primary air. Use of the deflected cores also improves sight-tightness of the grille face.

When installed in the ceiling, LD Linear Grilles provide a vertical downward air pattern which is effective in projection heating and cooling the building perimeter from ceiling heights above 12-15 feet. Application of downflow primary air should be limited in volume to insure against excessive drafts at the end of the throw. Core deflections of 0° —30° direct the air path angularly downward as required.

LD Linear Grilles are fabricated of high quality aluminum extrusions and are satin anodized. Keyways and splice plates facilitate hairline butting of foot sections to form continuous lengths. Volume dampers are integrally fastened to Series LD Grilles. Grilles can be fitted with hinges for field mounting to structural supports. 90° mitered corner sections are furnished in one piece. Blank-off baffles are furnished behind inactive sections of continuous grille lengths.

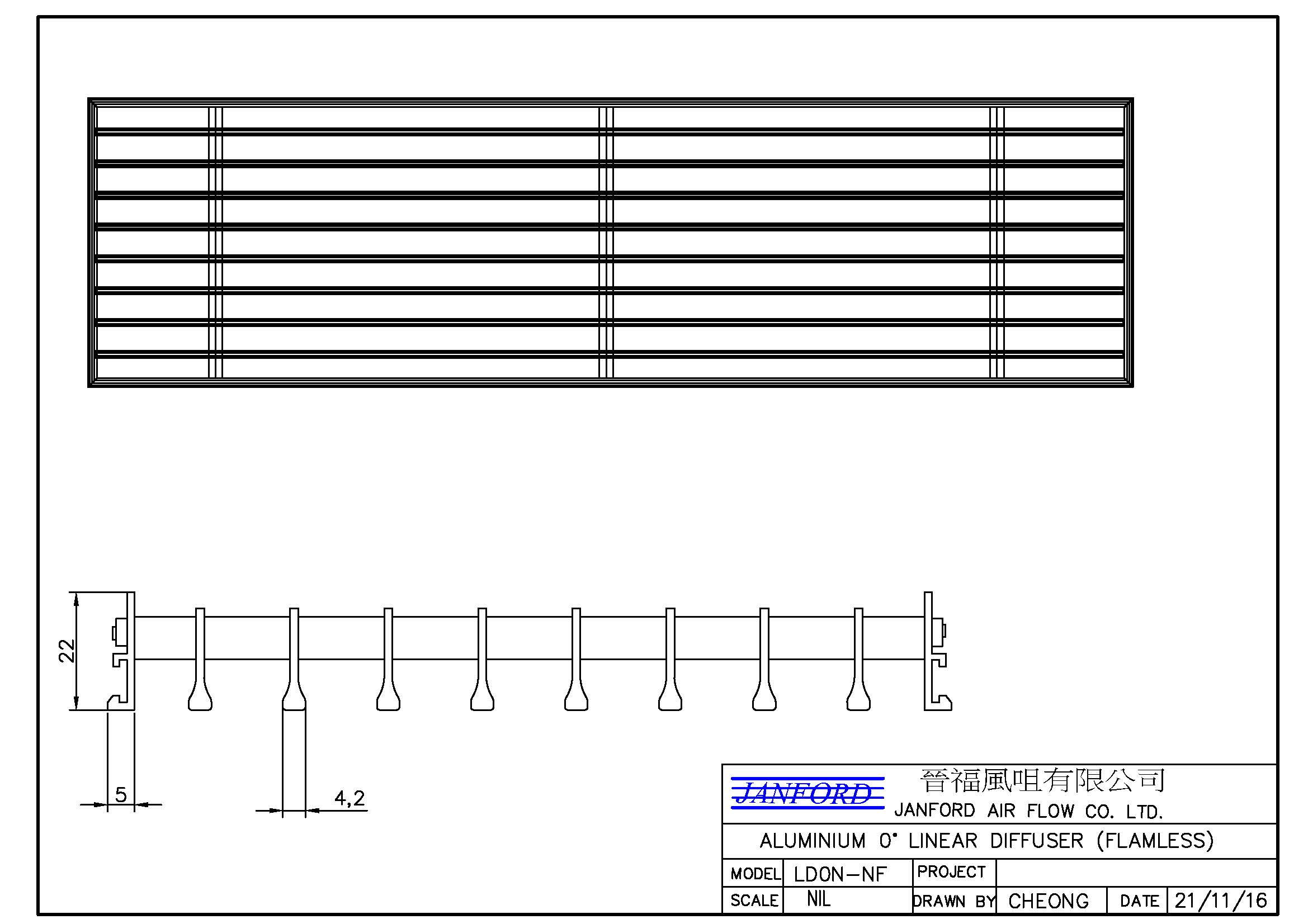

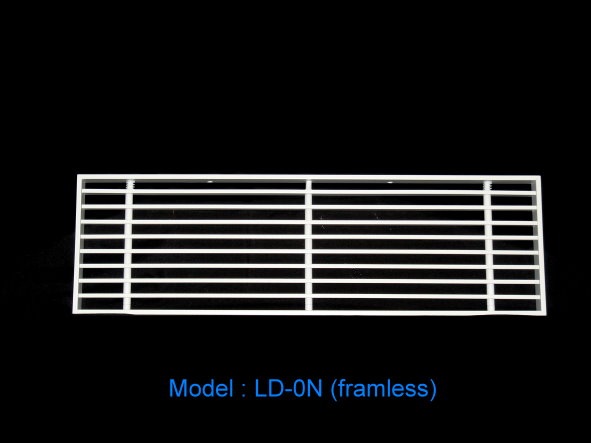

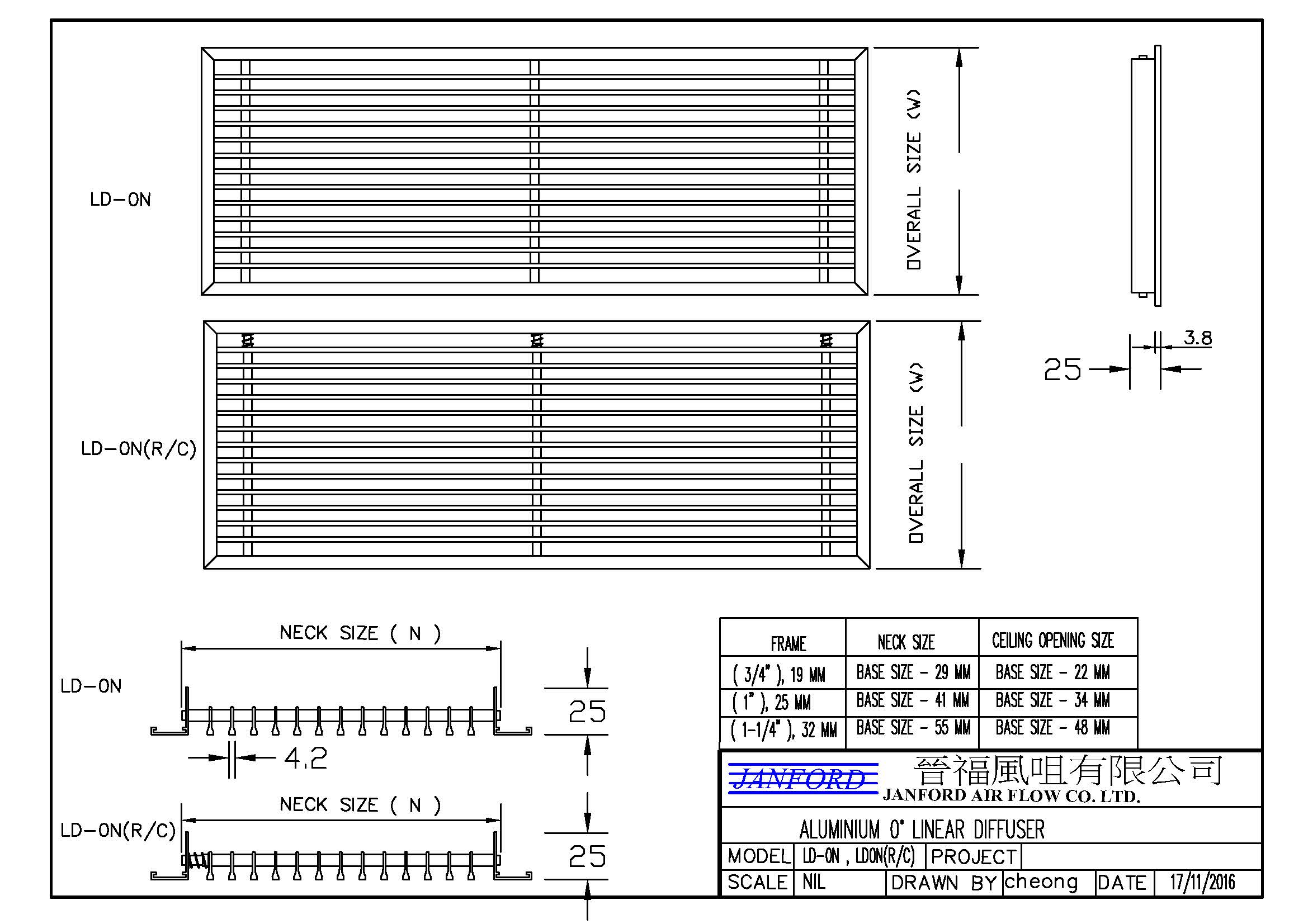

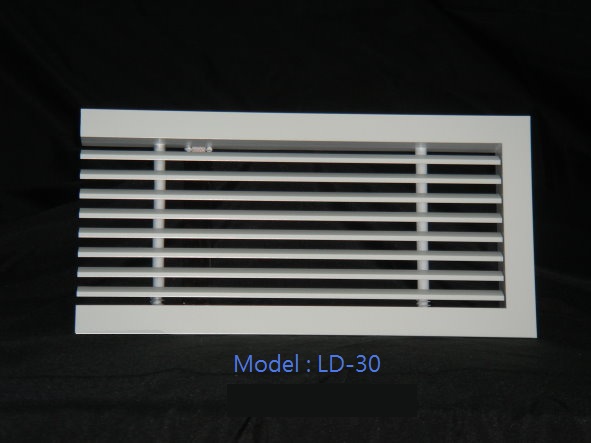

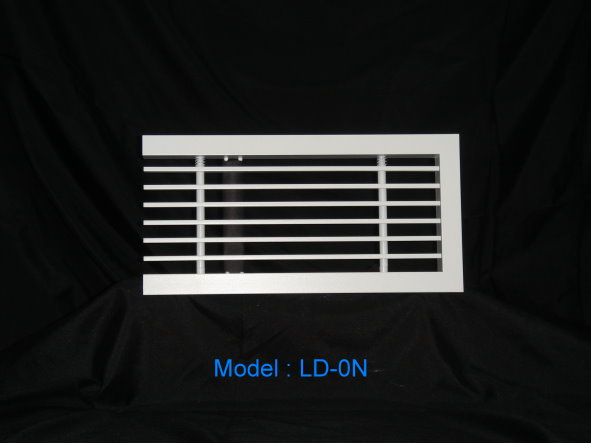

型號 : LD-0N, LD-30, LD-45 型號 : LD-0N, LD-30, LD-45廣泛應用於空調或抽風系統，天花頂吊或牆壁安裝均可配合設計，特別是採用型號LD-30於牆身安裝，裝30° 葉片向上，當氣流流動時便可吹到天花板上或天花板轉到牆上再擴散。

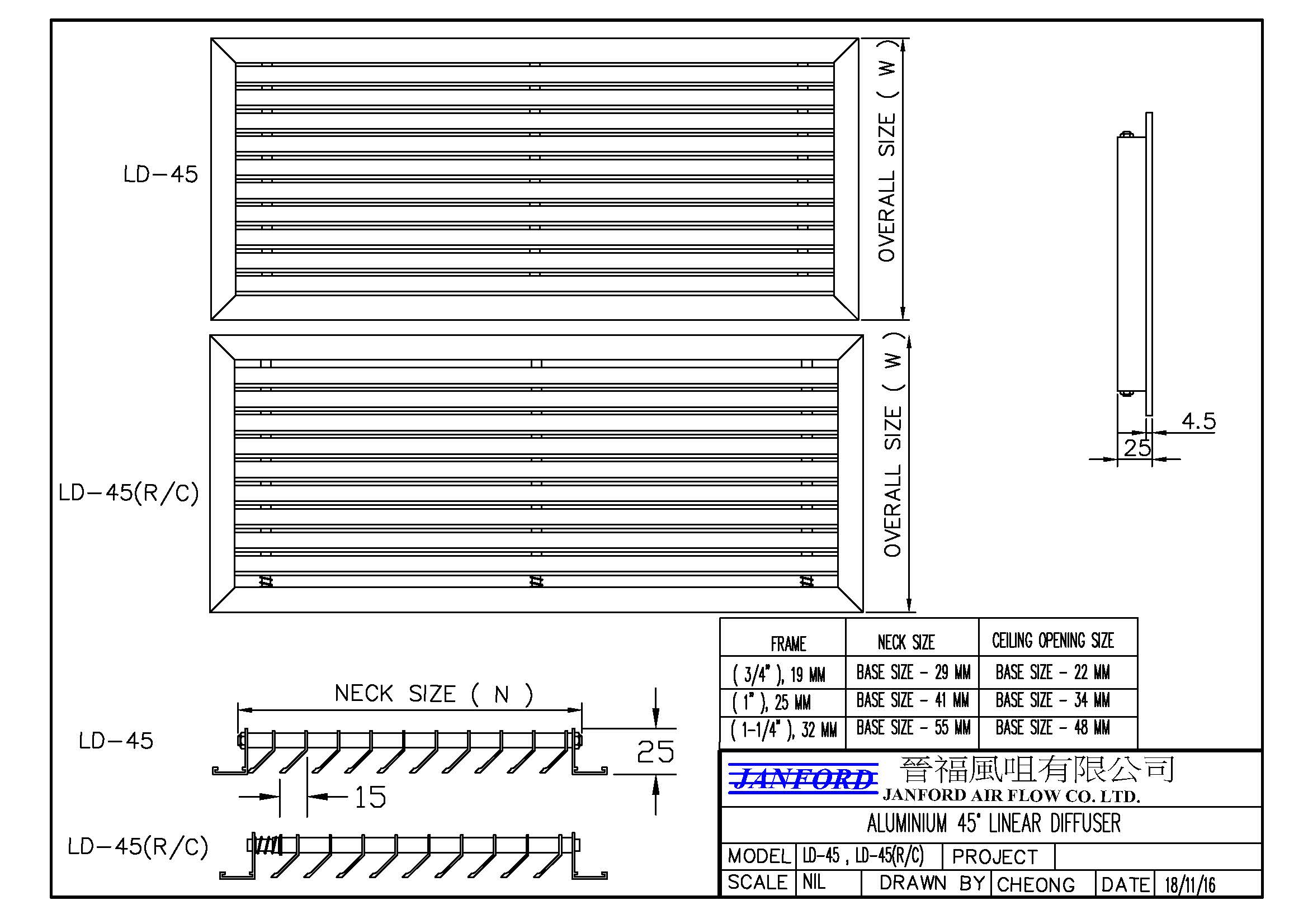

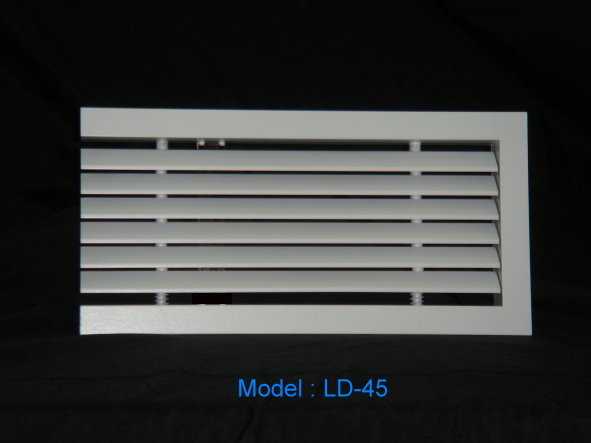

如採用LD-45於天花板時，當氣流流動時便可吹到天花板轉到牆上再擴散，如採用LD-0於牆身安裝時氣流更可吹到16呎外而NC值只有25。
型號LD採用高質鋁合金合成，如將兩條接上在一起便可造成一氣貫通之效果，更可配上調節閥和假風口用之遮光冚，而不需要因為風管而將風口折斷，更提供任何指定度數之角型段以連接線型咀到室內任何一個角落。

FEATURES Baked Enanel, Powder Coating Finish and Anodic Finish Available.
0 —30 and pencil-proof bar deflections.
OVERLAP MARGIN — 1-1/4” width (1", 3/4" 1/2” available if specified)
INVISIBLE HAIRLINE BUTTS in continuous lengths with keyway splices. Factory cut lengths for precise installation.
ONE-PIECE length to 10 feet.

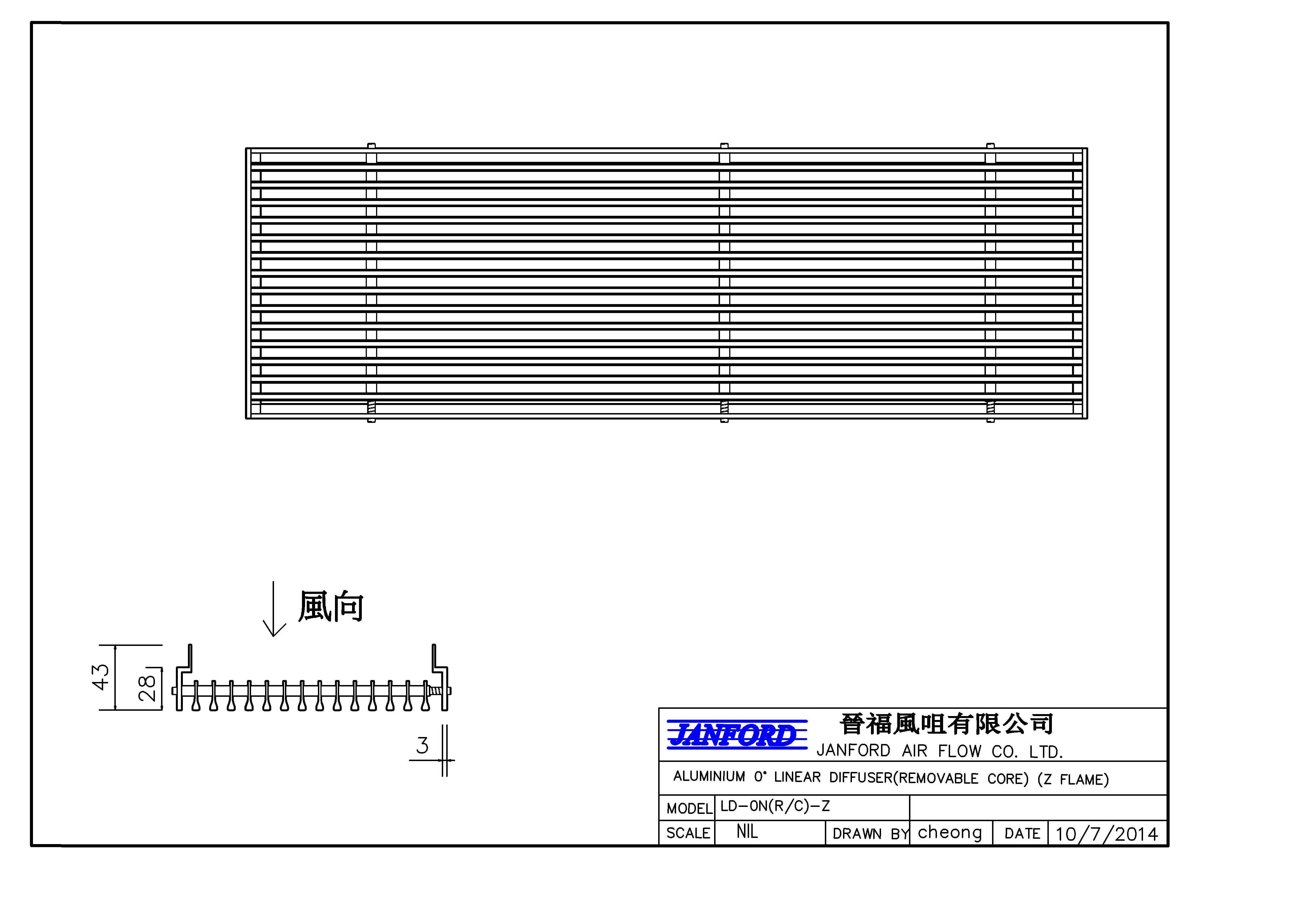

HINGED/REMOVABLE CORE available-if specified.

特性 - 鋁合金面經過無色陽極化處理，也可由客人自選顏色焗漆上色。
- 0° - 30° - 45° 葉片除標準供應外，更可有客人決定葉數多寡以配合室內裝飾設計。
- 冚口邊 - 有1-¼”，1"，¾” 闊供選擇，配合客人要求。
- 提供鐵戍或安裝時使用可使駁口接近無縫效果。
- 最長可訂10呎長一條。
- 門較式或拆膽式均可。
