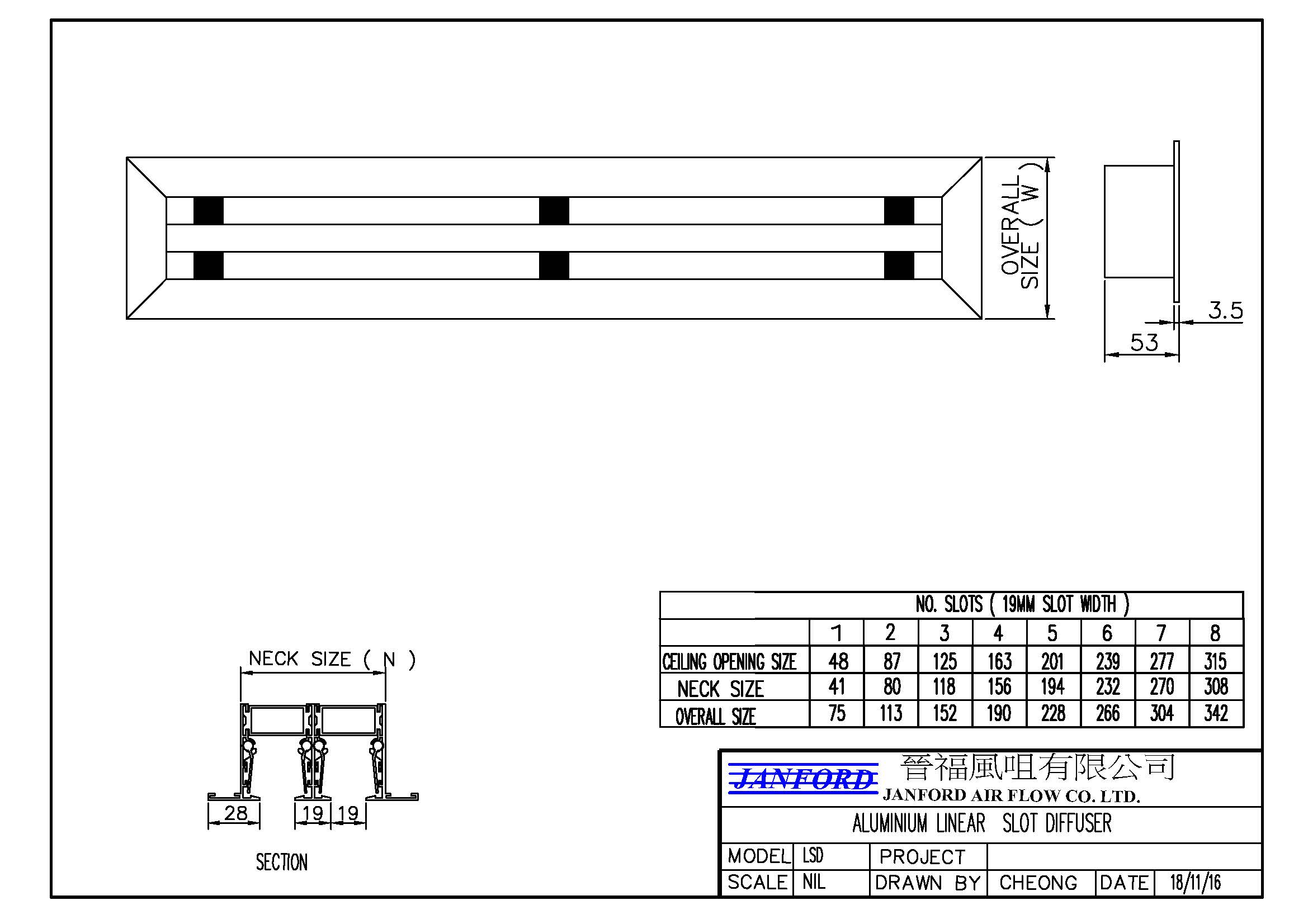

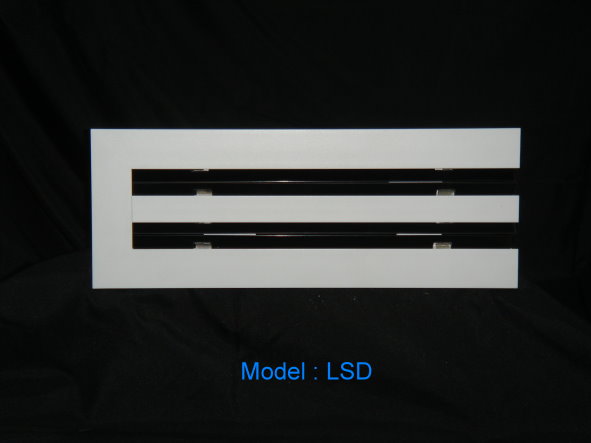

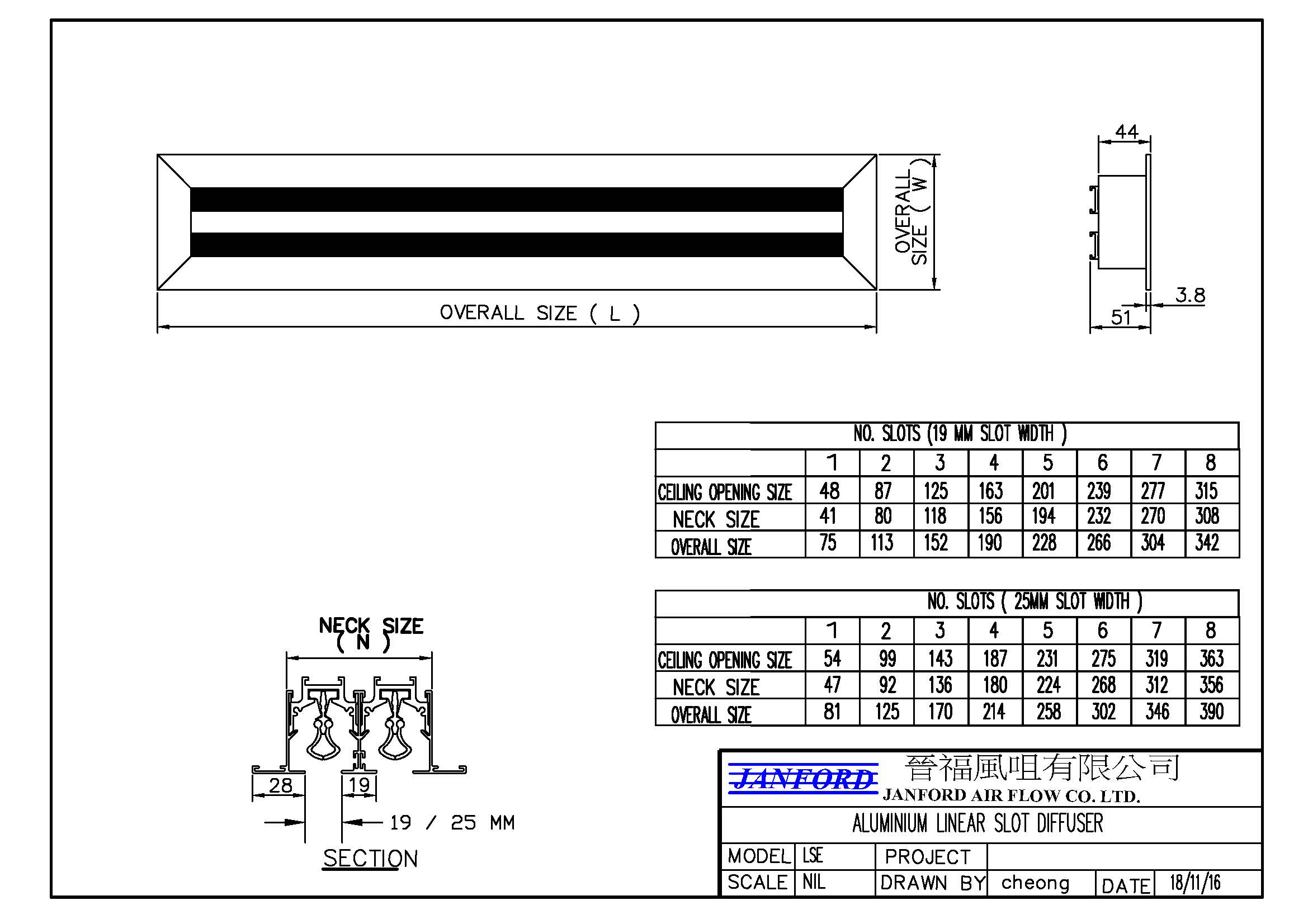

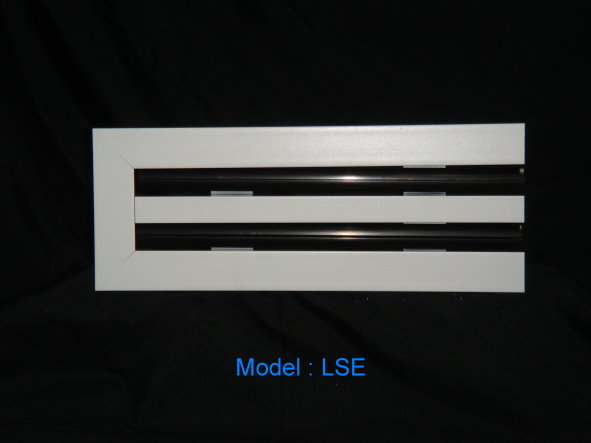

Series: LSD AND LSE
For Ceiling, Installation

PDF : LSD

  • Introduction

Series LSD & LSE Linear Slot Diffusers are designed for installation in the ceiling and are recommended for supplying heated, ventilated or cooled air and for returning or exhausting room air. Air pattern directional changes through 180° are effected by the integral Air Deflection Blade, permitting pattern adjustment to meet changing requirements.

When installed in the ceiling, LSD Diffusers provide a horizontal air path that is adjustable through 180° in each slot opening. One to ten slot can be adjusted to provide one-way or two-way air patterns by directing the Air Deflection Blade as required to either side. Vertical downward air pattern can be adjusted from all slots. A combination horizontal pattern and vertical down-Pattern can be effected from a two (or more) slot Linear Slot Diffuser.

LSD Diffusers are fabricated of high quality aluminium extrusions and are satin anodized. The Air Deflection Blade is coated dull black to accent the slot opening. Volume dampers 2- 3 feet long are positioned in each slot and are accessible through the slot opening. They may be used to equalize flow along the diffuser or to internally blank-off dummy sections in continuous lengths. 90° mitered corner sections are furnished in one piece.

型號 : LSD和LSE 型號 : LSD和LSE主要供應天花安裝和適用於空調和排風系統氣流可作180°之調節,其調風葉片足可應付氣流方向調節,1縫至10縫可調至1路或2路之氣流方向,更可下垂直推動,當2條用最少3縫風口時氣流何分別向左,中及右方分三路作流推動。
LSD及LSE型號採用上等鋁材組合而成,分風葉片經黑色陽極化處理,外表確保美觀,更可配上調節閥及遮光鐵冚,另可供應任何指定度數之角型段以連接型咀到室內任何一個角落。

FEATURES SIOT SIZES 3/4 inch slot
ONE TEN slots wide for air volumes of 10-300 cfm per foot.
BAKED ENAMEL powder coating finish and anodized finish available.
180° Air Deflection Blade provides positive-positioning, constant static pressure, constant outlet area.
INVISIBLE HAIRLINE BUTTS in continuous lengths with key-way splices, Factory cut for precise installation.
ONE-PIECE length to 10 feet

特性 - 氣槽位闊度為標準供應¾”
- 鋁合金製造,表面經過無色陽極化處理,也可由客人自選顏色焗漆上色。
- 氣流可180°調較。
- 提供鐵戍或安裝時使用可使駁口接近無縫效果。
- 最長可訂10呎長一條。
