SUPPLY GRILLES AND REGISTERS
Series: SDG-H, SDG-V, SSG-H, SSG-V, ADG-H, ADG-V, ASG-H, ASG-V
PDF :
ADG | ASG
- Introduction
Series SG-V and SG-H single deflection supply grilles and registers are recommended for applications requiring pattern adjustabiliy in a single horizontal or vertical plane - sill grilles, sidewall location at ceiling line, or heating applications only.
Series DG-V and DG-H double deflection supply grilles and registers are recommended for application in systems requiring optimum flexibility of pattern change to accommodate changing job conditions.
SG 單層百葉適用於只需控制上下或左右而無需太靈活調較風向，以避免雙層百葉之壓力增高，由其適用於暖氣系統。
DG 雙層百葉適用於需要氣流靈活調節之空調地區特別適用於辦公室或酒樓，避免氣流直接流向使用人士，而引起不適感覺。
FEATURES
Overlap margin — 1-1/4 inch width, with gasket to minimize smudging. Furnished pierced screw holes and mounting screws.
Steel construction — rigid heavy gauge welded margins with hairline corners, quality construction throughout.
Integral dampers — heavy gauge extruded aluminium blades in a rigid mild steel frame. Opposed blade operate by screw driver unnecessary to use special tool or key.
Baked enamel finish, special paint finishes available.
特別 - 鋁合金製
- 冚口邊 - 有1-¼”，1"，¾” 闊
- 鋁合金製美觀耐用
- 可配調節閥，單用螺絲起子便可調較風量
- 鋁合金面經過無色陽極化處理，也可由客人自選顏色焗漆上色。
型號 :
SDG-H : 鋼製雙層百葉，葉片前排水平，後排垂直。
SDG-V : 鋼製雙層百葉，葉片前排垂直，後排水平。
SSG-H : 鋼製單層百葉，葉片水平安放。
SSG-V : 鋼製單層百葉，葉片垂直安放。
HOW TO SPECIFY:
SDG-H: Mild steel double deflection (Horizontal Face Bar)
SDG-V: Mild steel double deflection (Vertical Face Bar)
SSG-H: Mild steel single deflection (Horizontal Face Bar)
SSG-V: Mild steel single deflection (Vertical Face Bar)
Accessories: Opposed blade Damper
Example: SDG-V + D
Mild steel double deflection register (Vertical Face Bar) c/w Opposed Blade Damper.
FEATURES
Overlap Margin — 1-1/4 inch wide, with gasket to minimize smudging. Furnished with pierced screw holes and mounting screws.
Aluminium construction — heavy gauge extruded aluminium margins, mechanically interlocked with hairline corners, quality moisture proof construction throughout.
Integral dampers — heavy gauge extruded aluminium blades in a rigid Mild Steel frame. Opposed blade operate by screw driver unnecessary to use special tool or key.
Baked enamel and powder coating finish, special paint and anodic finishes available.
HOW TO SPECIFY:

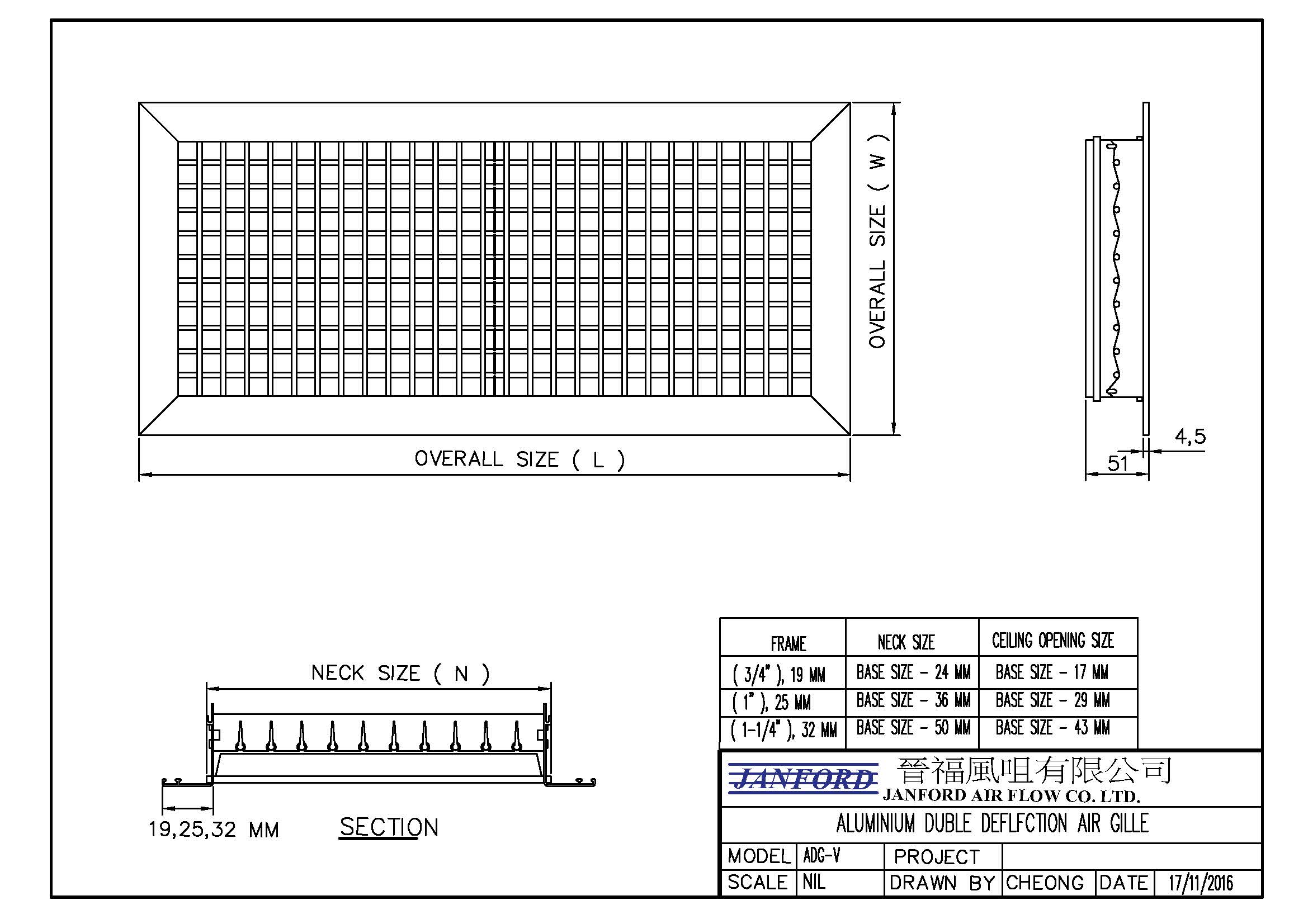

ADG-H: Aluminium double deflection grille (horizontal Face Bar).
ADG-V: Aluminium double deflection grille (Vertical Face Bar).

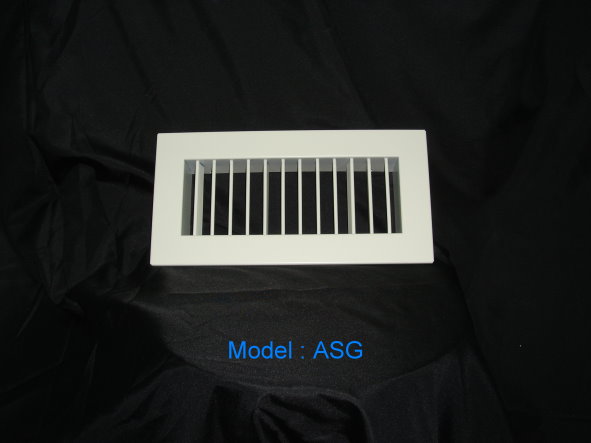

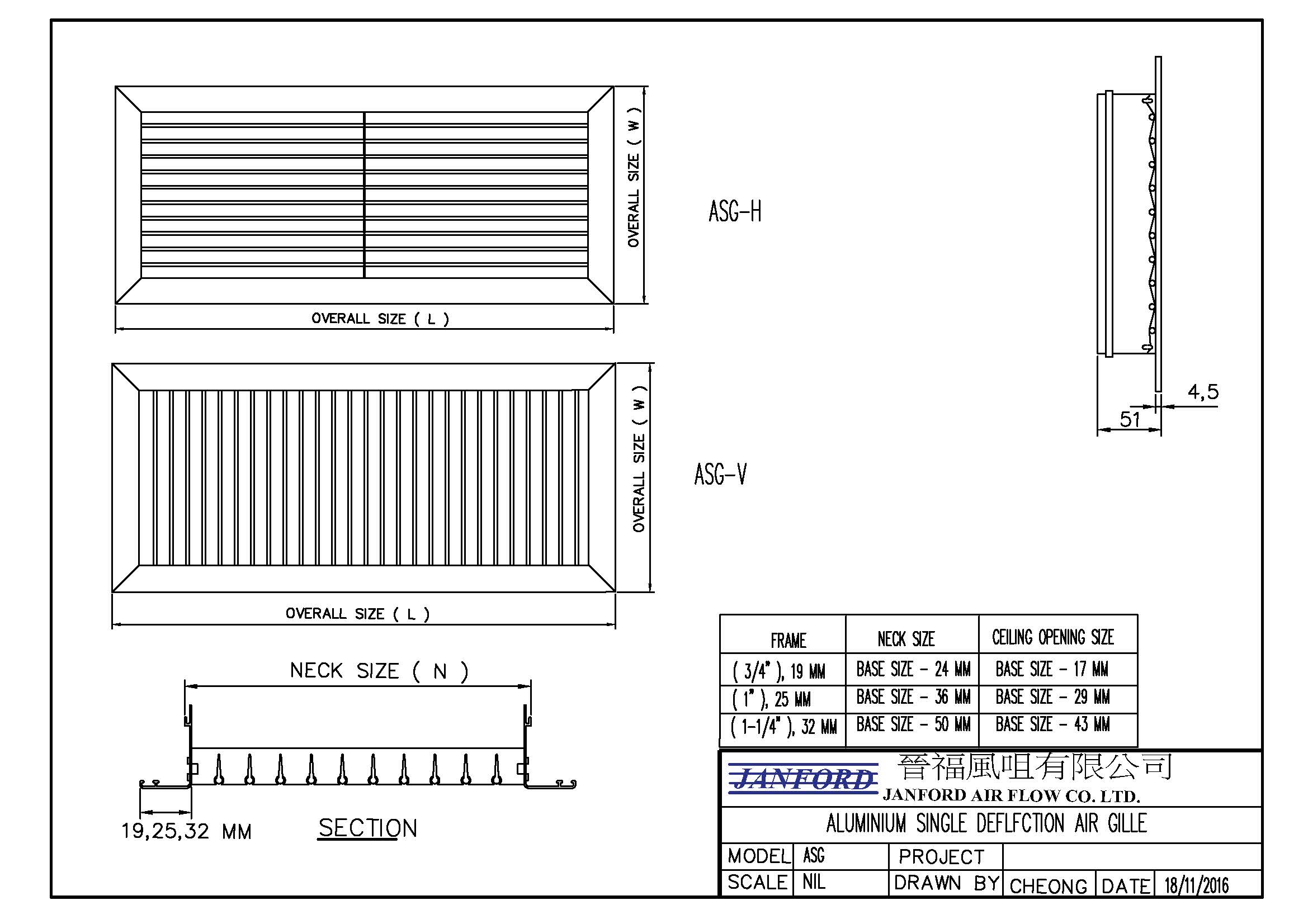

ASG-H: Aluminium single deflection grille (Horizontal Face Bar) .
ASG-V: Aluminium single deflection grille (Vertical Face Bar) .
Accessories: Opposed Blade Damper.

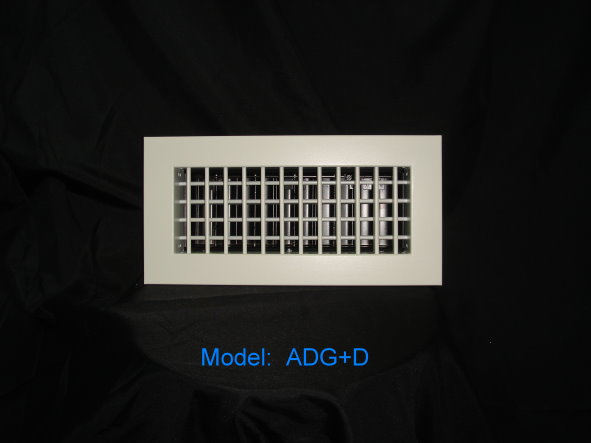

Example: ADG
Aluminium double deflection register (Horizontal Face Bar) c/w Opposed Blade Damper.
特別 - 鋼製
- 冚口邊任何尺寸均可
- 鋼製堅固耐用
- 可配調節閥，單用螺絲起子便可調較風量
- 鋼製風口可由客人自選顏色焗漆上色，標準供應為白色。
型號 :
ADG-H : 鋁合金雙層百葉，葉片前排水平，後排垂直。
ADG-V : 鋁合金雙層百葉，葉片前排垂直，後排水平。
ASG-H : 鋁合金單層百葉，葉片水平安放。
ASG-V : 鋁合金單層百葉，葉片垂直安放。
